MVSI 1000 Mobile Sand Making Machine

MVSI Series Mobile Crushing and Screening Plants in a systematic order on a single chassis; It is produced with track/belt, apron feeder, vertical shaft crusher, vibrating screen, stock belts and automation system.
Vertical shaft crusher characteristically has the ability to produce high amounts of 0-5 mm sand. Thanks to this feature, the mobile vertical shaft crusher is generally used for concrete aggregate production.
It is controlled with a full automation system, and can be operated and maintained by an operator.

250-400 Ton/Hour
Production Capacity

Vertical Shaft Impact Crusher

2200x5500 mm
Vibrating Screen Size

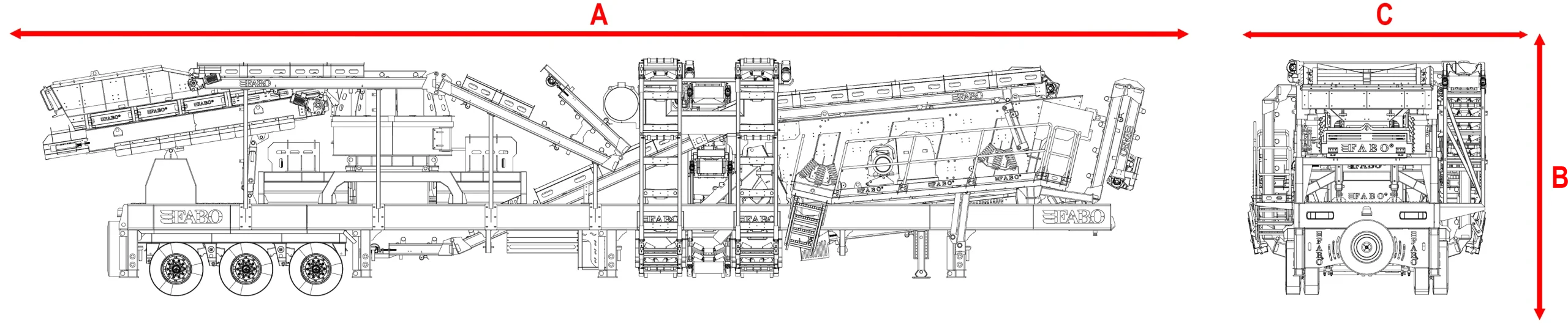

MVSI-1000 Portable Vertical Shaft Impact Crusher Technical Specifications

For detailed information Contact Us

Contact Form

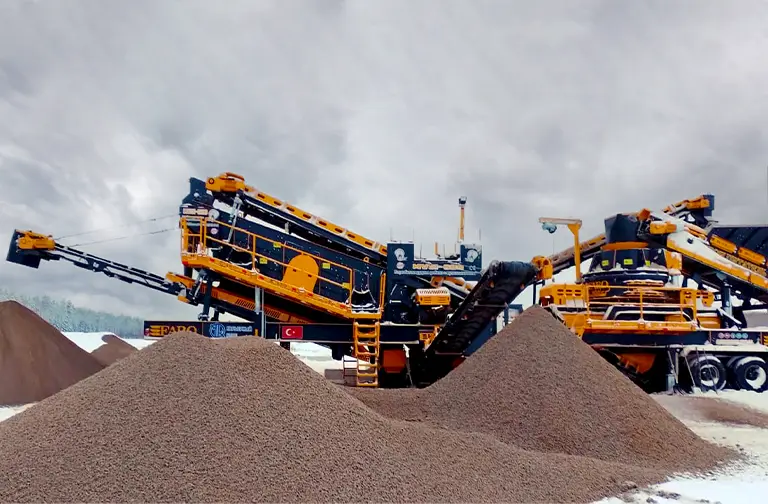

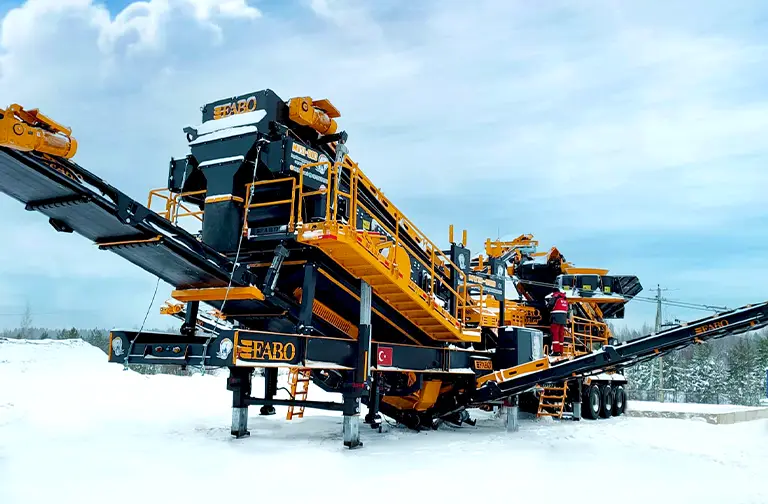

FABO MVSI 1000 is a mobile type & closed circuit crushing and screening plant known as also SAND MAKING MACHINE that is used for high percentage of cubical shape sand production purpose by processing the hard materials such as dolomite, granite etc.

MVSI 1000 includes one stage of crushing process that is made by a Vertical Shaft Impact crusher which is capable to produce high percentage of sand with good cubical shape.


MVSI 1000 is a combination of :

  • Vibrating Feeder Bunker
  • Virtical Shaft Impact Crusher
  • High Stroke Type Vibrating Screen
  • Folding type feeding, feedback and stock conveyor belts
  • Hydraulic feet
  • Mobile Chassis with axles and tires
  • Fully Automation System
  • Dust removal system
  • Electric Generator (Optional)

Reliable, durable, strong and especially compacted design of MVSI 1000 makes it unique against it competitors. As other FABO products, MVSI 1000 is also the preference of the investors whose only intention is to achieve the best results. Please contact us for more information about MVSI 1000 mobile crushing, screening and washing plant.
