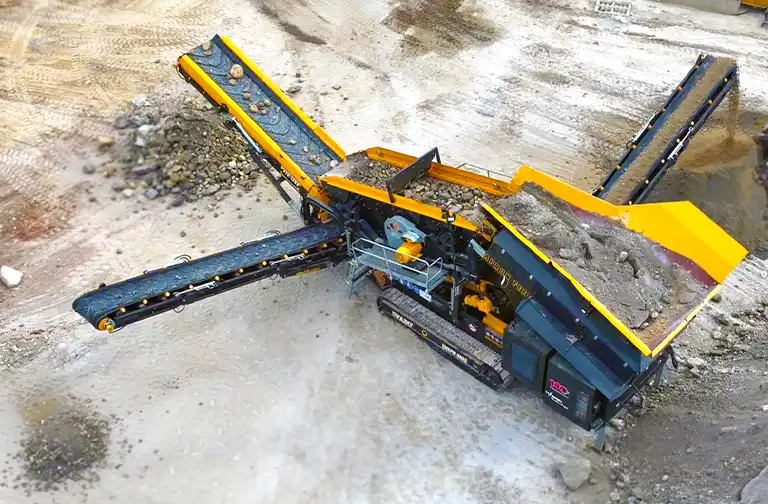

Tracked Scalper Screen

Scalper Screen consists of the unique harmony of apron feeder, vibrating screen, stock conveyors, generator and control unit. The Scalper Screen , which provides mobility with the FABO pallet system, high screening capacity with the vibrating screen and maximum power with the generator, is the number one solution partner for the screening process.


It is generally used in quarries to classify and separate large-sized products. It separates the products extracted from quarries in raw form or the products broken in primary crushers such as jaw crushers and impact crushers from dirty materials such as (Mud, Sand) and enables the separated products to be obtained as bypass material. Quarry and mining, iron ore, construction demolition waste, sand It was developed as a high-capacity and versatile, heavy-duty screen to work in primary and secondary screening applications such as gravel, topsoil and coal. Products separated from sand and mud by vibrating screen are transferred to secondary or tertiary crushers (Tertiary Crusher, Vertical Shaft Crusher, Secondary Impact Crusher, Cone Crusher). In this way, the final product quality in aggregate production is increased.


General Features of Scalper Sieve


Apron Feeder: It is a system that provides uninterrupted product transfer to the vibrating screen. With the automation system, the movement speed can be adjusted manually.


Vibrating Screen: It screens the products perfectly and sends them to the stock area.


Hybrid Technology: Thanks to its hybrid technology, it can operate with both diesel fuel and electrical energy. At the same time, it minimizes operating costs with the fuel savings it provides.


Pallet System: Thanks to the pallet system, it gains perfect mobility in difficult and rugged construction sites.


Hydraulic System: It is a special system that allows the stock belts and apron feeder to be moved by a personnel with hydraulic arms.

Remote Control System: Pallets can be moved independently with the remote control system. Stock Tapes, Apron Feeder, Vibrating Screen and Stock Tapes Can Be Started and Stopped. Apron Feeder Speed Control Adjustment Can Be Operated at the Desired Hz with the Help of Remote Control System and Potentiometer

220-400 Ton/Hour
Production Capacity

1530x4800 mm
Vibrating Screen Size


31.000 kg

110 kVA

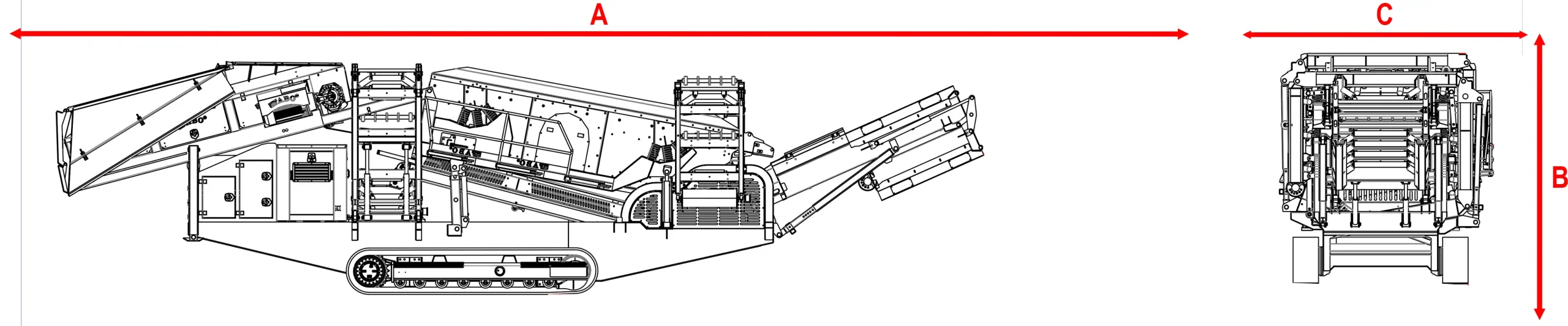

FTB 15-50 Scalper Screen Technical Specifications
