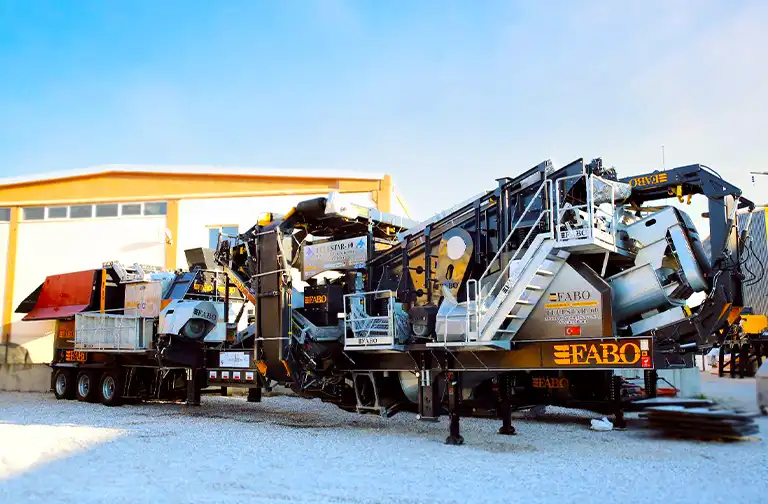

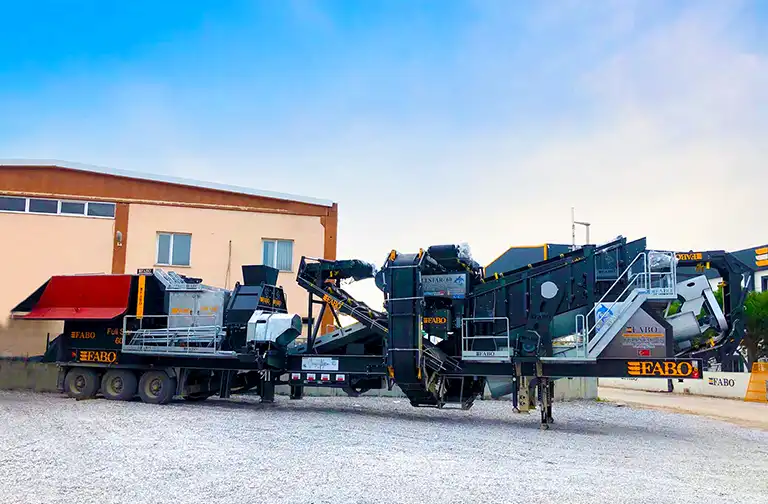

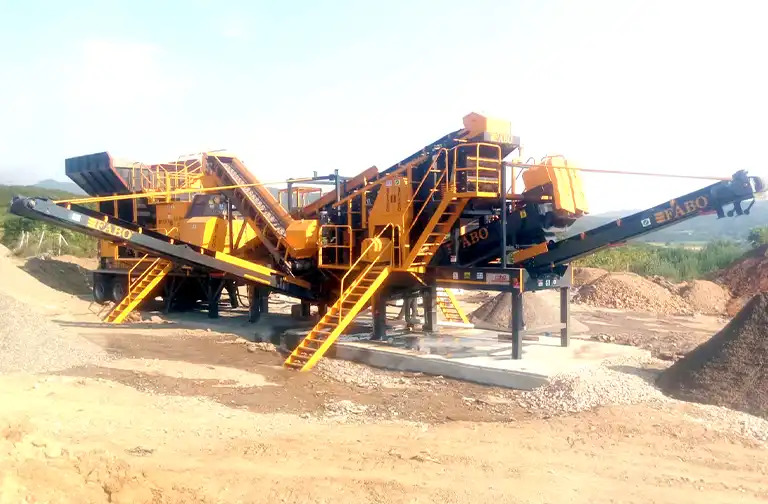

FABO FULLSTAR 60 is a mobile type & closed circuit crushing, screening and washing plant that is used for processing of any kind of hardness materials such as limestone, riverstone, basalt, granite, dolomite etc. FULLSTAR 60 includes two stages of crushing process that is made by primary jaw crusher and tertiary impact crusher or secondary impact crusher which is capable to produce high percentage of sand with good cubical shape. After the two stage crushing process, crushed and screened material is washed by water jets inside the screen (coarse materials) and the screw washer (finest material). This model could be manufactured single or 2 chassis per your request.
Thanks to the compacted design of FULLSTAR 60, all necessary equipment of a crushing, screening and washing plant such as a vibrating feeder, a primary jaw crusher, a tertiary crusher, a vibrating screen, belt conveyors, washing screw, automation system, electric generator etc. is assembled on only a single mobile chassis and thus the plant can be transported by only one truck head. Thanks to its hydraulic system chassis, FULLSTAR 60 mobile crushing, screening and washing plant offers easy and rapid installation & usage to its users.
FULLSTAR is a combination of :
- Vibrating Feeder Bunker
- Primary Jaw Crusher
- Tertiary Impact Crusher(or Secondary impact crusher)
- High Stroke type Vibrating Screen
- FOLD UP type Feeding, feedback and stock conveyors
- Washing Screw
- Water jets inside the Screen
- Fully Automation System
- Dust Removal System
- Hydraulic feet
- Mobile Chassis with axles and tires
- Electric Generator (Optional)
-Hydraulic Mobile Chassis Reliable, durable, strong and especially compacted design of FULLSTAR 60 makes it unique against its competitors. As other FABO products, FULLSTAR 60 is also the preference of the investors whose only intention is to achieve the best results.
Please contact us for more information about FULLSTAR 60 mobile crushing, screening and washing plant.
