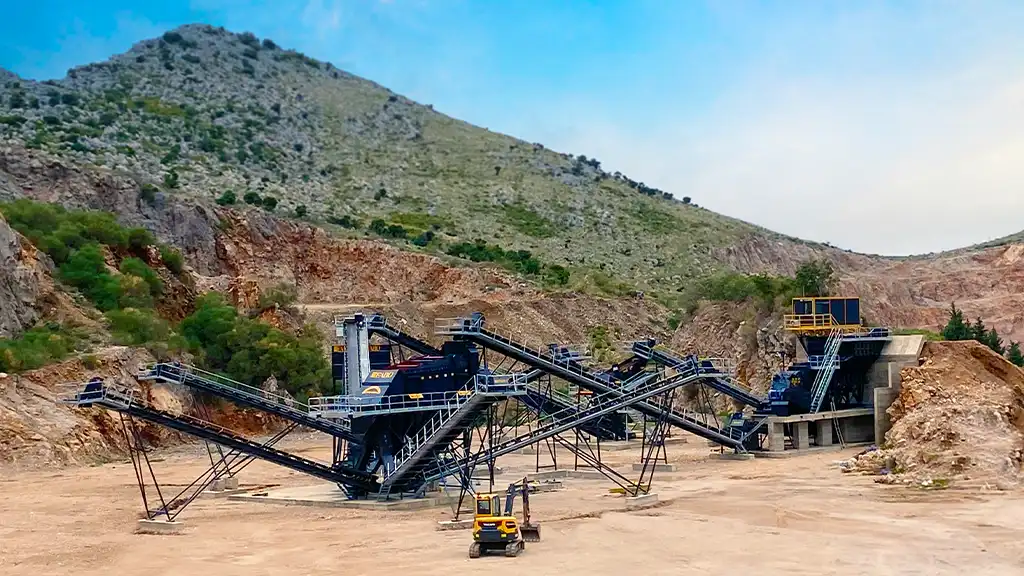

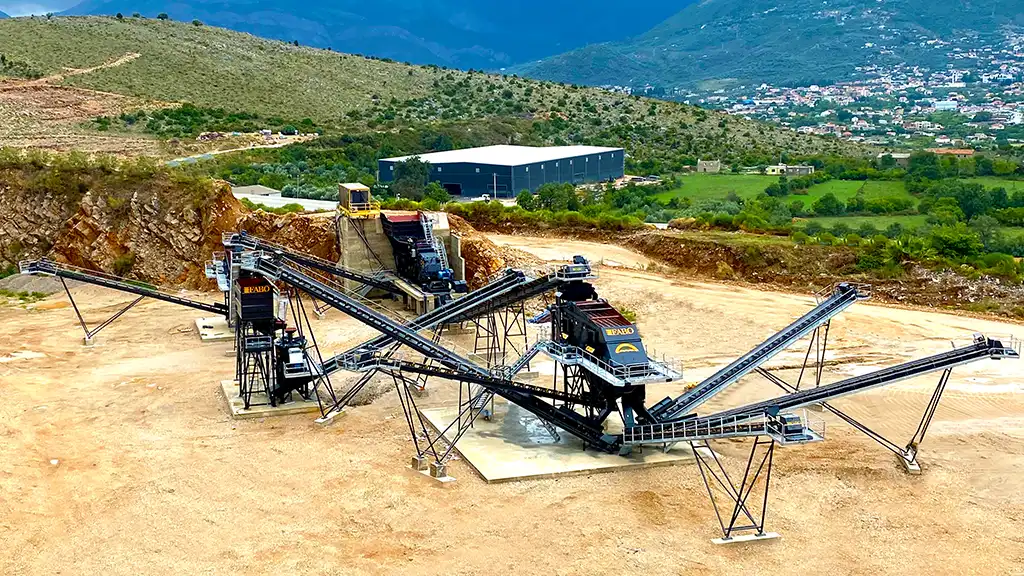

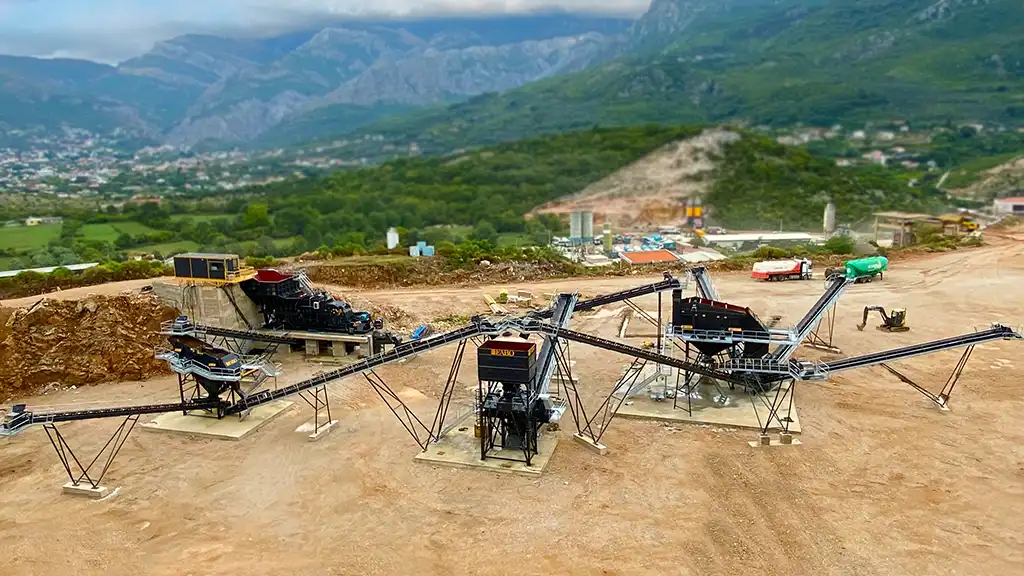

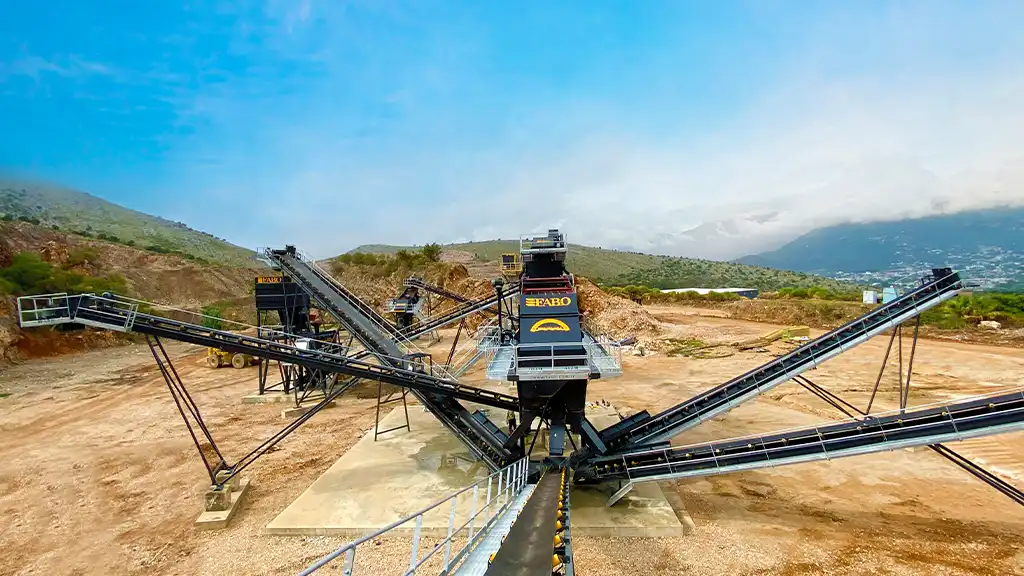

350–400 TPH Stone Crushing and Screening Plant
The 350–400 tons per hour stone crushing and screening plant is designed to deliver maximum performance, durability, and efficiency for large-scale aggregate production. Engineered with advanced technology, this high-capacity system provides reliable operation for construction, mining, and infrastructure projects that demand consistent, high-quality output.
Overview of the Crushing and Screening Plant
This fully integrated system processes large stones and rocks extracted from quarries into various sizes of aggregate materials.
Equipped with automated feeding, crushing, and screening units, it ensures continuous and stable production. Despite its large capacity, the plant offers excellent energy efficiency and low maintenance costs, making it ideal for long-term operation.
Main Components and Operation Stages
1.Vibrating Feeder Bunker
The vibrating feeder bunker ensures a steady and controlled material flow to the primary crusher.
Advantages:
- Uniform feeding for consistent crushing performance
- Prevents crusher overload
- Increases overall system efficiency and durability
2.Wobbler Feeder
The wobbler feeder is designed for handling wet, sticky, and large materials. It separates fine particles before they reach the crusher.
Advantages:
- Prevents blockages and material buildup
- Protects the crusher from excessive load
- Ensures stable and efficient feeding

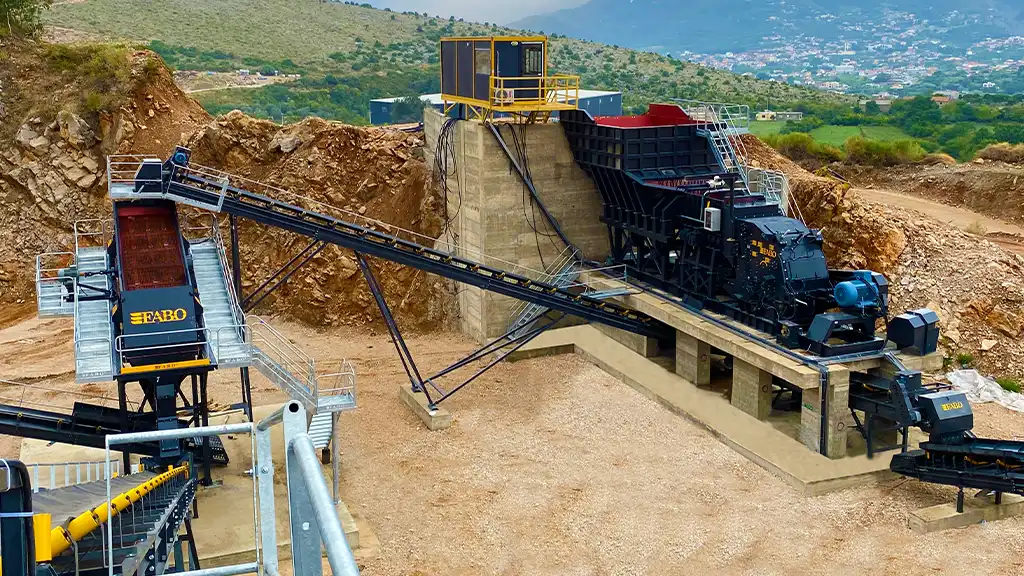

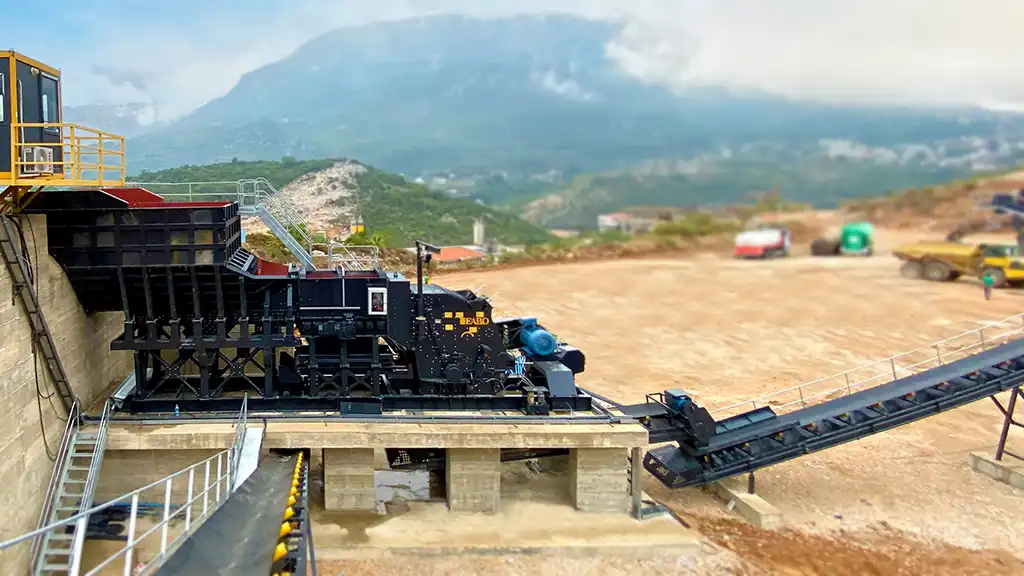

3.Primary Impact Crusher
As the core of the system, the primary impact crusher reduces large rocks into smaller, manageable sizes.
Key Features:
- High impact energy for efficient primary crushing
- Adjustable breaker plates for desired output size
- Produces cubical-shaped aggregates
4.Vibrating Screen
The vibrating screen classifies crushed material into various size fractions using powerful vibration motors.
Advantages:
- Precise screening and size separation
- Large screening area for higher efficiency
- Durable and low-maintenance design
300–400 TPH Stone Crushing Screening Plant Advantages:
• High reduction ratio and excellent product shape
• Automatic hydraulic adjustment and overload protection
• Robust and wear-resistant design for long service life
• Consistent performance with low operating cost
5.Horizontal Vibrating Screen
After secondary crushing, the material passes through a horizontal vibrating screen for final size classification.
Advantages:
- Accurate particle separation
- Compact and quiet operation
- High screening precision
6.VSI Crusher Feed Hopper
The VSI crusher feed hopper provides steady and uniform material feeding to the vertical shaft impact crusher, ensuring efficient sand production and consistent particle shape.
Advantages:
- Controlled feeding for stable rotor performance
- Optimized design for uniform material distribution
- Heavy-duty, wear-resistant structure for long service life
- Easy integration with conveyors and feeding systems
7.Vertical Shaft Impact (VSI) Crusher
The VSI crusher is used for fine crushing and sand production, shaping the final product.
Advantages:
- Superior particle shape and consistency
- Energy-efficient design
- Low wear and operating cost
8.Automation System
The automation system enables full automatic control of the entire crushing and screening plant from a single control cabin. Equipped with advanced PLC technology, it ensures precise, safe, and efficient operation of all equipment.
Advantages:
- Fully automatic operationfor optimized performance and efficiency
• Centralized control via user-friendly control cabin interface
• PLC-based system ensuring reliability and precision
• Manual mode option allowing independent testing of each unit
• Enhanced safety and monitoring for uninterrupted plant operation
Applications
- Ready-mix concrete production
- Road and highway construction
- Dam and power plant projects
- Quarry and mining operations
Why Choose the 300–400 TPH Stone Crushing Screening Plant?
- ⚙️ High Production Capacity: Ideal for large-scale aggregate and mining operations.
- 🔧 Durable Equipment: Long service life and low maintenance.
- ⚡ Energy Efficiency: Optimized motors and crushers minimize power consumption.
- 🌍 Environmentally Friendly Design: Equipped with dust suppression and noise control systems.
