MTK 130 Mobile Sand Making Machine

MTK Series Mobile Tertiary Crushers are designed to crush hard and soft production materials into sand and gravel.
Thanks to its tertiary crusher, the plant can produce high amounts of 0-5 mm sand for concrete aggregate production and construction projects.
The products crushed by the tertiary crusher are classified into 4 different sizes with a vibrating screen and transferred to the stock area.

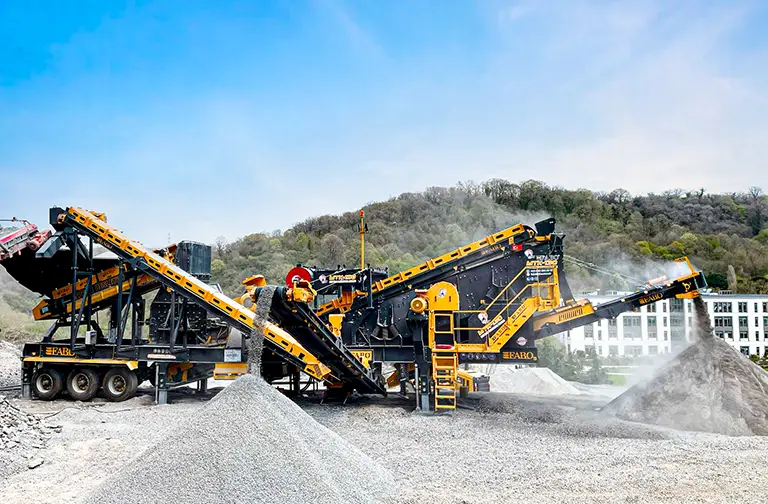

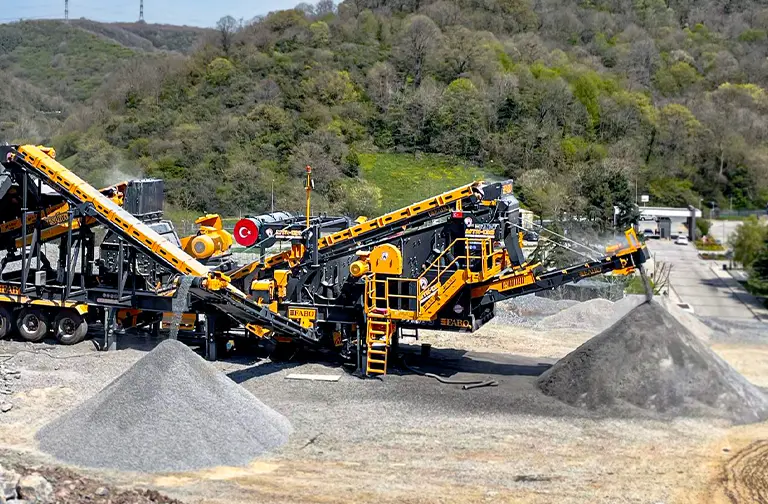

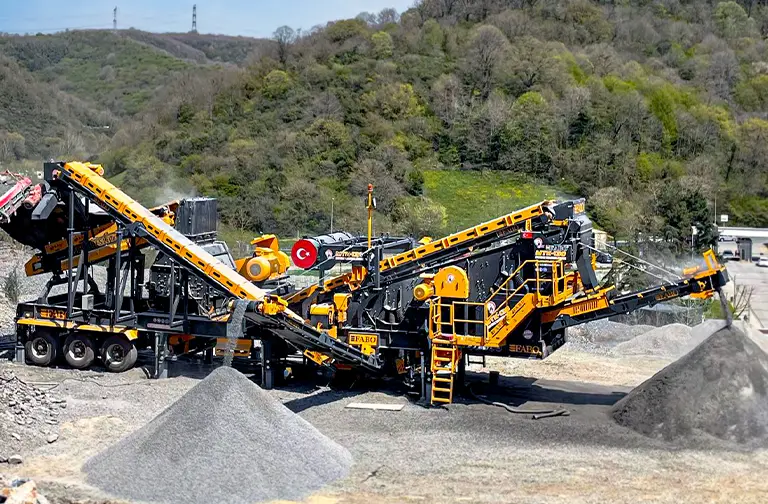

FABO MTK 130 is a mobile type & closed circuit crushing and screening plant known as also SAND MAKING MACHINE that is used for high percentage of cubical shape sand production purpose by processing soft and middle hard materials such as limestone, basalt etc.

MTK 130 includes one stage of crushing process that is made by a tertiary impact crusher which is capable to produce high percentage of sand with good cubical shape.

MTK 130 is a combination of :

• Vibrating Feeder Bunker
• Tertiary Impact Crusher(Sand machine)
• High Stroke Type Vibrating Screen
• Folding type feeding, feedback and stock conveyor belts
• Hydraulic feet
• Mobile Chassis with axles and tires
• Fully Automation System
• Dust removal system
• Electric Generator (Optional)
