The MEY Series Mobile Screening and Washing Plants are designed to perform screening and washing of production materials.
Thanks to its washing system, it provides obtaining clean final products free of dirt. The washing processes of the products are performed with vibrating washing screen and spiral washer.
120-200 Ton/Hour
Production Capacity
Ø 600x5000 mm
Screw Washer
TE-1645
Vibrating Washing Screen
Mobile
Chassis
MEY-1645 Mobile Screening Washing Plant Technical Specifications
How Does a Mobile Screening Washing Plant Work?
The MEY‑1645 Mobile Screening & Washing Plant sorts incoming material through its multi-deck vibrating screen into different sizes. The washing unit then removes clay, dust, and fine particles, producing clean, ready-to-use aggregates. Its tracked design and hydraulic systems make relocation easy, while the automation panel ensures smooth, high-quality operation with minimal manual effort.
FABO MEY-1645 mobile natural screening and washing plant is an ideal solutions for the classifying and WASHING of materials which was provided as pre-crushed.

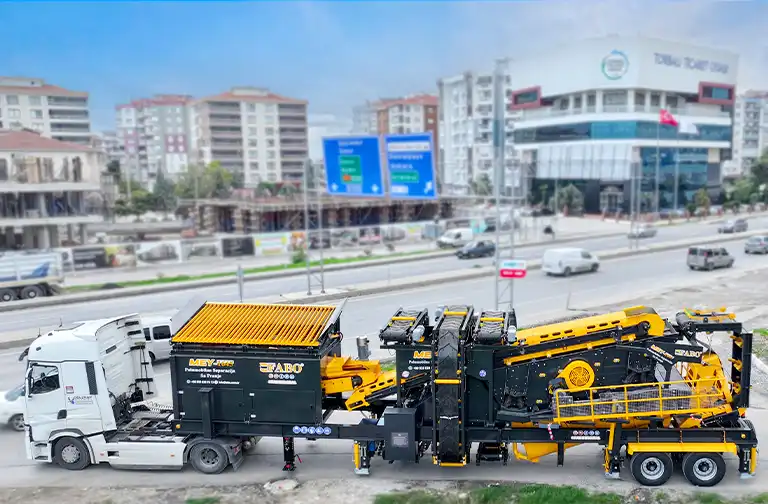

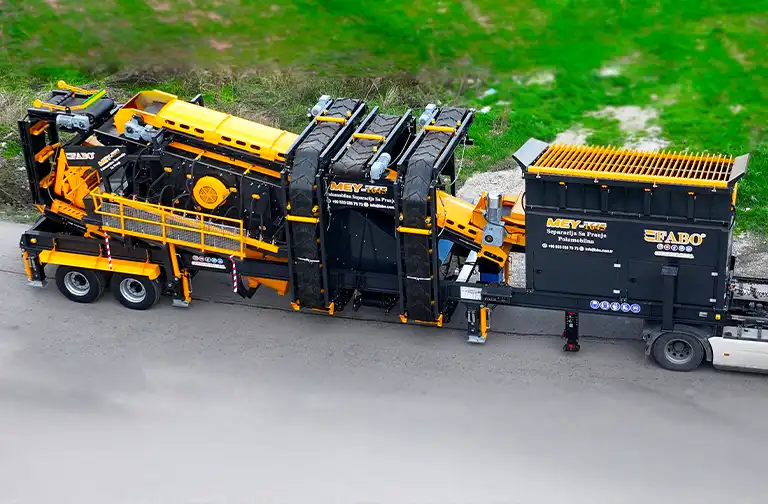

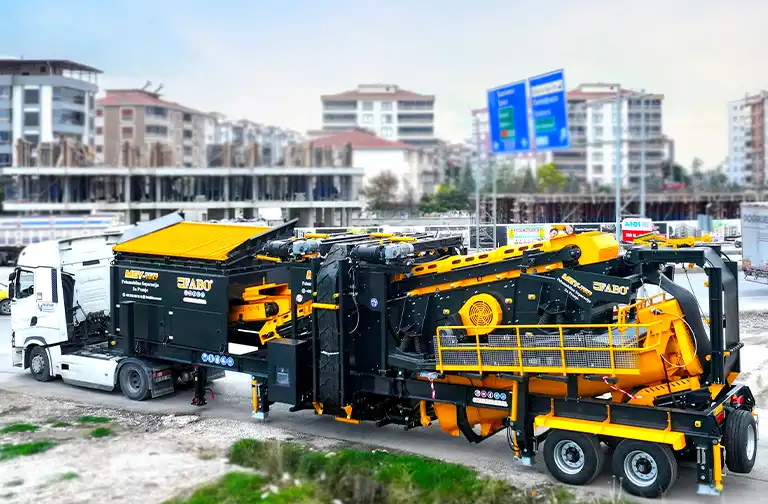

Fabo MEY Mobile Washing range are highly versatile and fully portable washing systems mounted on a heavy duty triple-axle chassis for ease of transport and set-up. The MEY Mobile Plant provides an efficient and cost effective solution for short to medium term projects. The MEY mobile plants can produce up to 4 quality washed sands and washed aggregates saleable products.
The MEY mobile plant can be supplied with a mobile feeding and pre-screen unit, and mobile stockpilers offering a complete turnkey processing system to provide maximum productivity and portability for sand and gravel producers.
This Super Machine is a combination of:
- Grizzly Feeder Bunker
- High Stroke Type Vibrating Screen
- Folding Type Feeding and Stock Conveyors
- Washing Screw

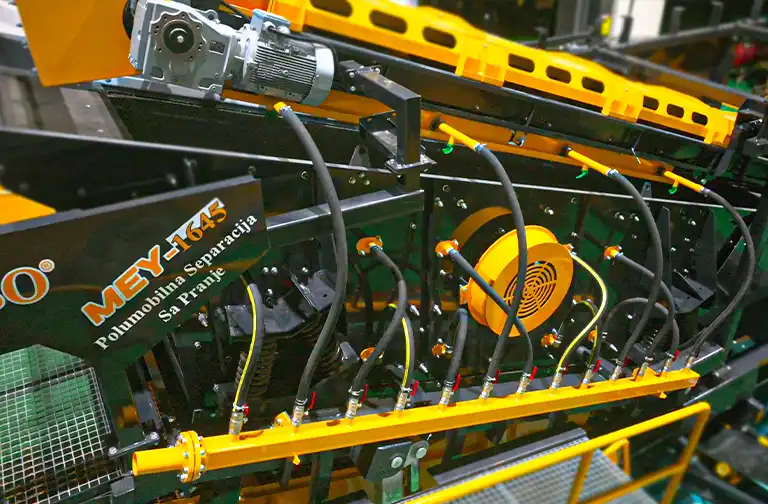

- Water jets inside the Screen
- Hydraulic feet
- Mobile Chassis with axles and tires
- Fully Automation System
- Electric Generator(optional)
*Most important advantage of plant is having all equipment on only a single chassis. It can be done by only one truck head.
