MCK 60 Mobile Crusher

MCK Series Mobile Hard Stone Crushing and Screening Plants are produced to carry out the crushing and screening process of high-hardness stones. It is produced in different models as single or double chassis.
MCK Series Mobile Hard Stone Crushing and Screening Plants are controlled by an automation system. Thanks to the automation system panel on the machine, the operating mode of the machine is adjusted.

The equipment that forms the basis of the plant, such as crusher, vibrating screen, stock belts, feeding bunkers are controlled by the automation system.
The automation system, which allows you to use the mobile crushing and screening plant in the most efficient way, is prepared with PLC and serves its users with the most advanced state of technology.

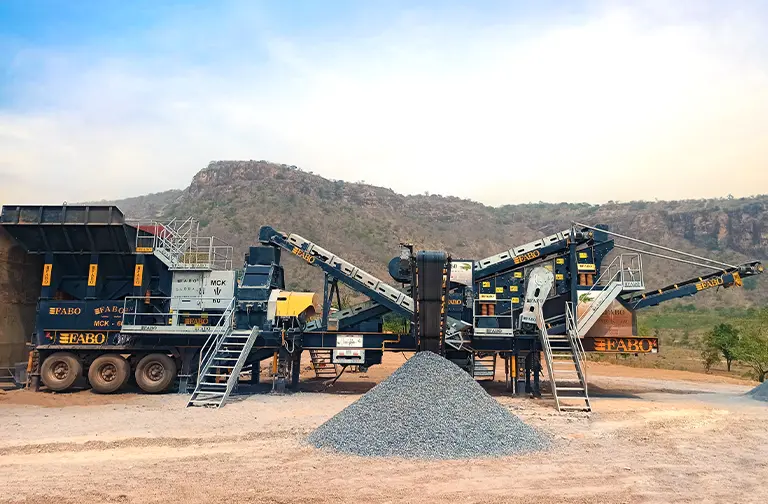

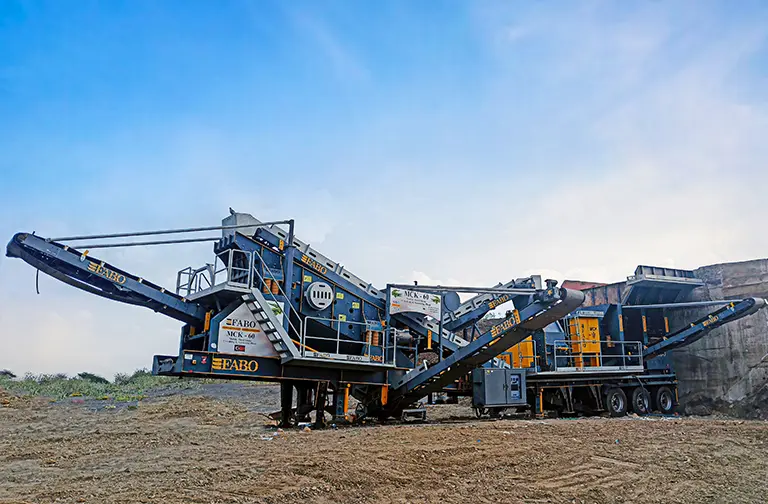

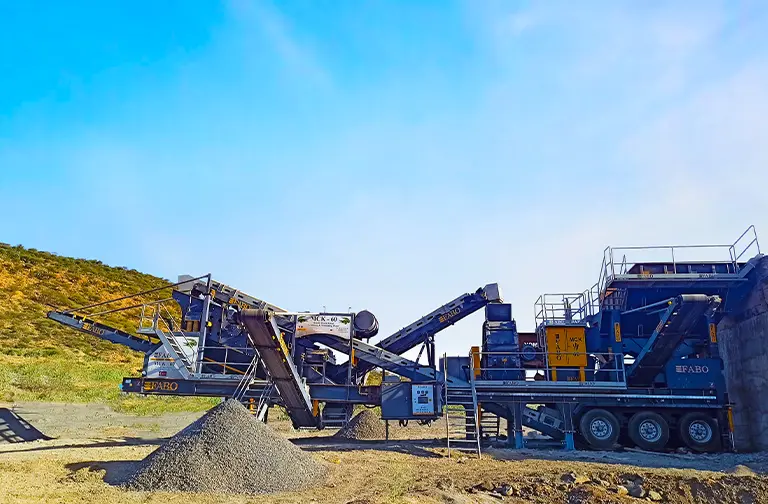

FABO MCK 60 is a mobile type & closed circuit crushing and screening plant that is used for processing of hard materials such as basalt, granite, dolomite etc. and other types of hard stones. MCK 60 includes two stages of crushing process which is made by primary jaw crusher and tertiary crusher. It is also possible to replace secondary impact crusher instead of tertiary crusher.

1. MCK 60 is a combination of :

• Vibrating Feeder Bunker
• Primary Jaw Crusher
• Tertiary Impact Crusher(or Secondary Impact)
• High Stroke Type Vibrating Screen
• Folding type feeding, feedback and stock conveyor belts
• Hydraulic feet
• Mobile Chassis with axles and tires
• Fully Automation System
• Dust removal system
• Electric Generator (Optional
